SureClose® MK180

Compact Design. Powerful Hydraulic Closing Performance

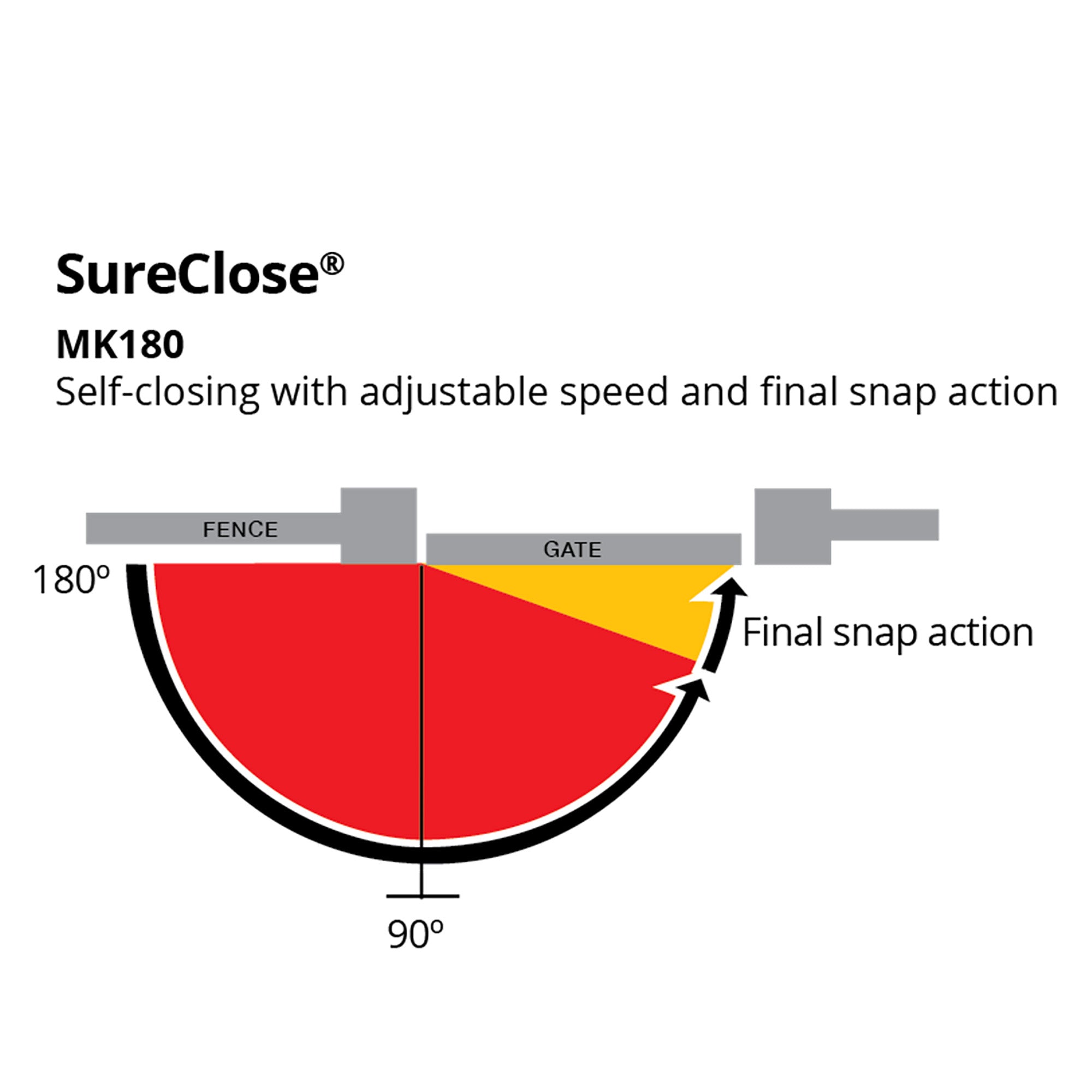

• 180° hydraulic self-closing control

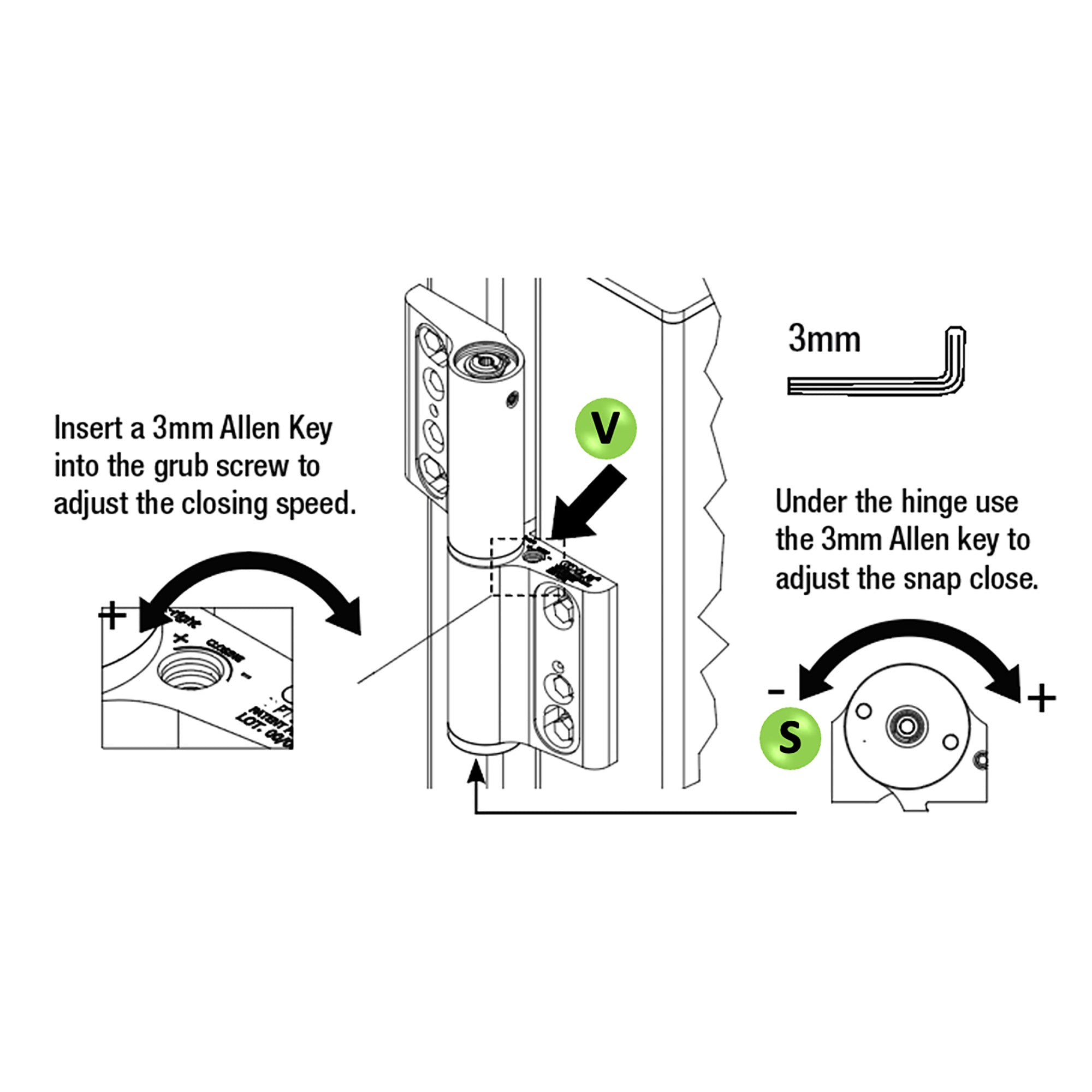

• Adjustable closing and latching speeds
• Returns gates safely to the closed position
• Suitable for gates up to 330 lbs (150 kg)
• No gate stop required
• Marine-grade matte black, anodised finish
• Excellent corrosion resistance
• Ideal for coastal and harsh environments
• Installs in under 30 minutes
• Compact, low-profile 7½" (190 mm) design

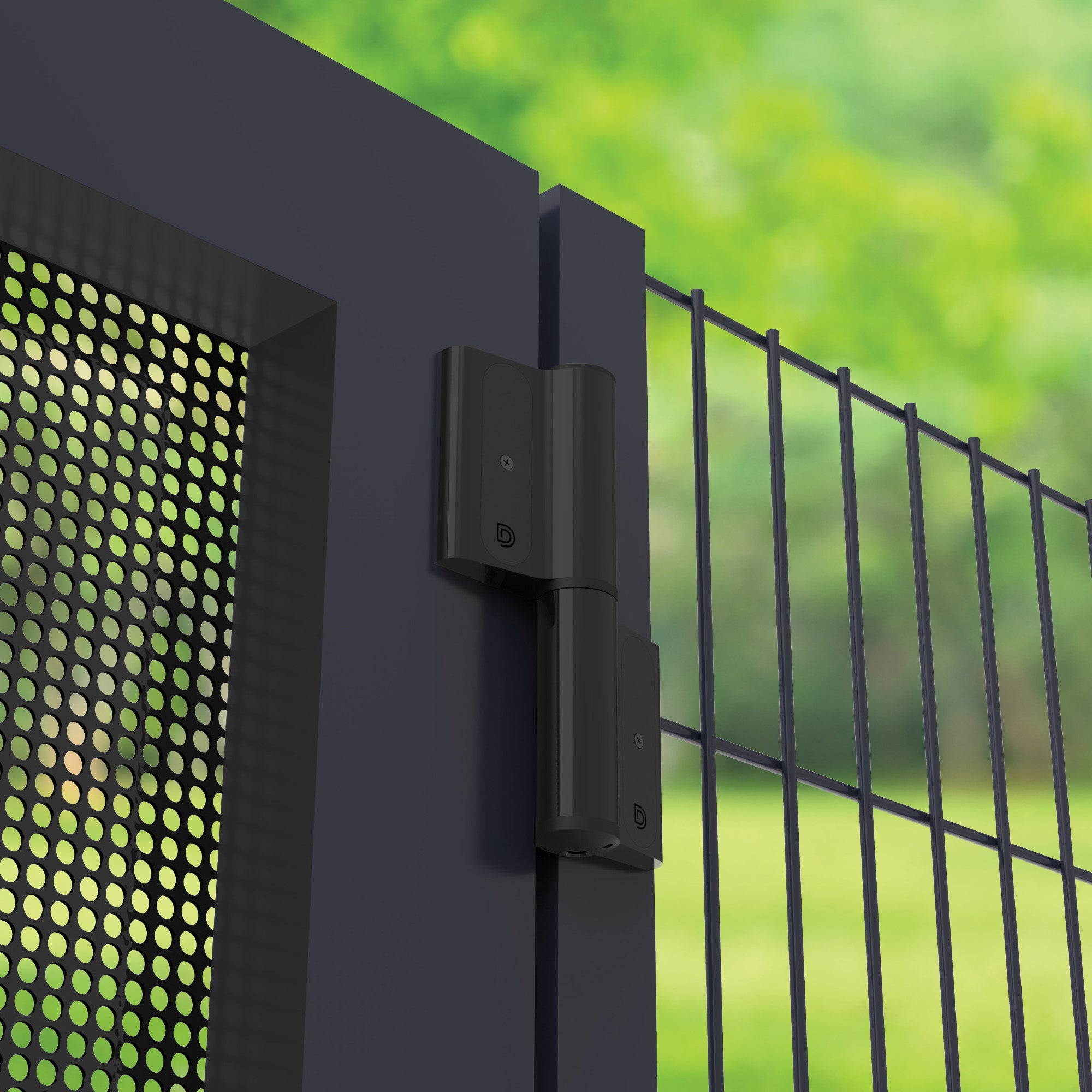

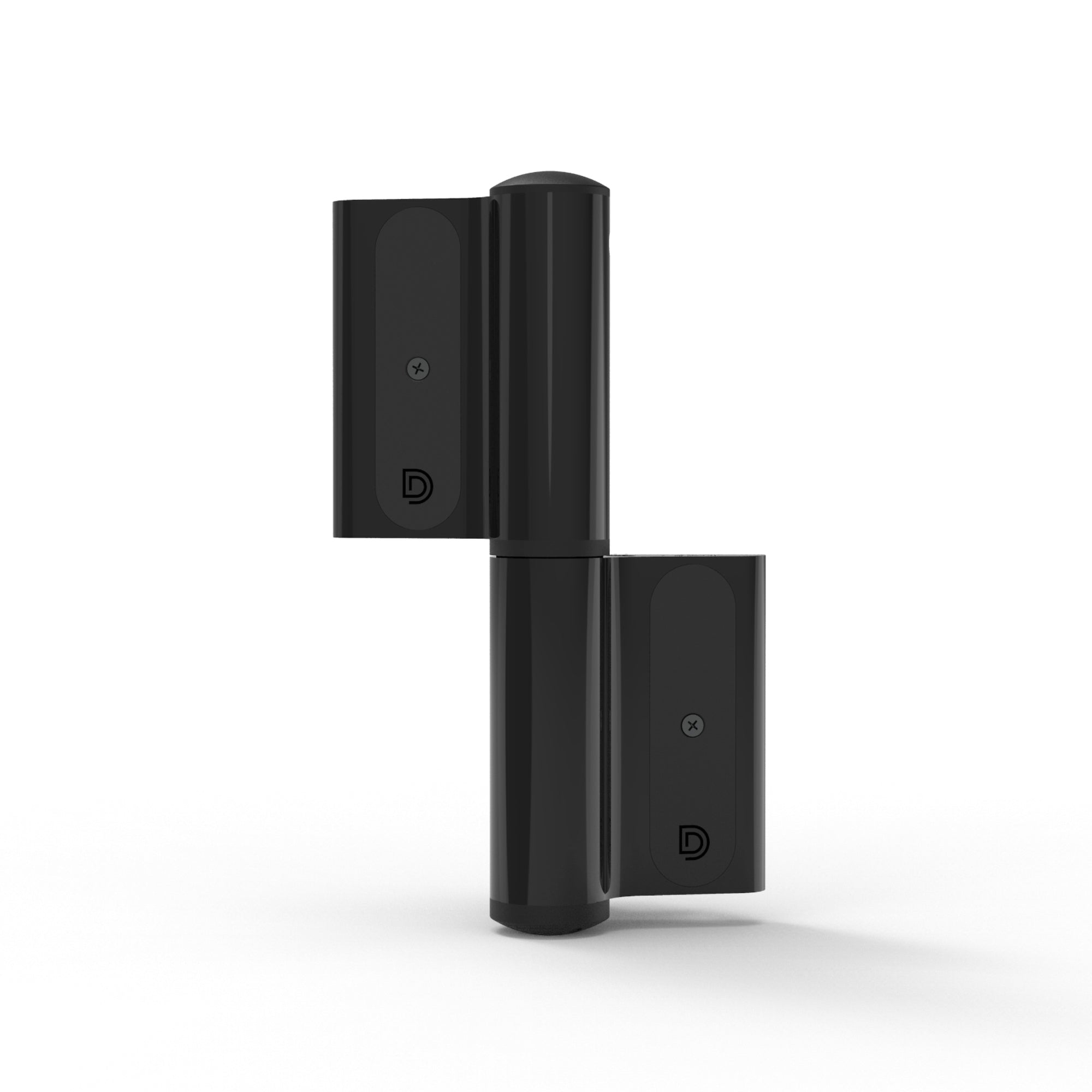

D&D’s compact SureClose® MK180 hydraulic gate closer delivers premium performance in a small footprint. It provides smooth 180° hydraulic control with independently adjustable self‑latching speed from 20°, ensuring precise, reliable operation. Powered by MotionKinetic™ fluid technology, it maintains consistent closing speeds across temperature changes. Designed for gates up to 150 kg (330 lbs.) and compliant with ADA requirements, it supports safe, accessible entry. At just 190mm (7½”) tall, it preserves gate aesthetics while offering easy installation, built‑in adjustability and no need for gate stops—reducing cost and install time with a strong, compact alternative to larger competitors.

Brand	SureClose®

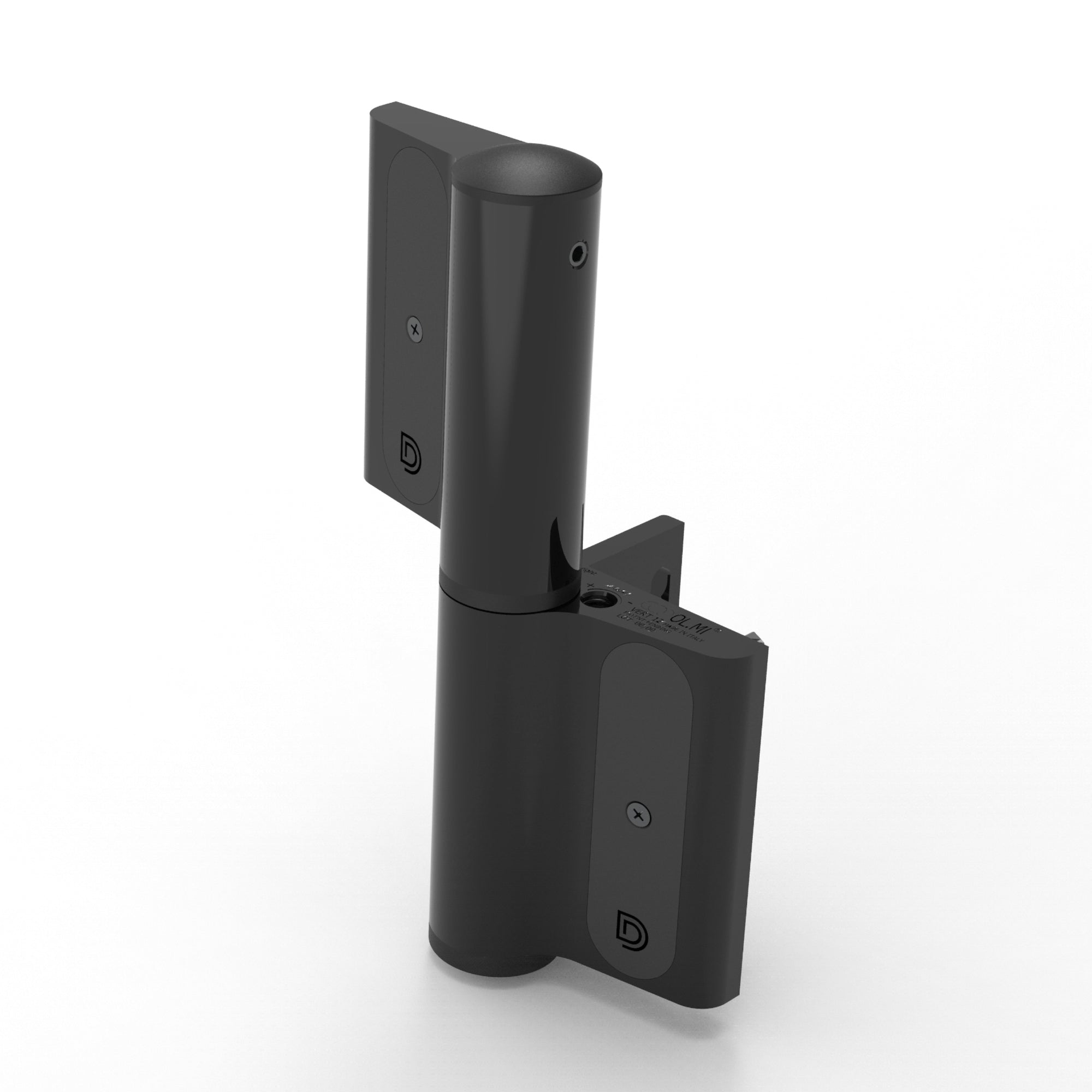

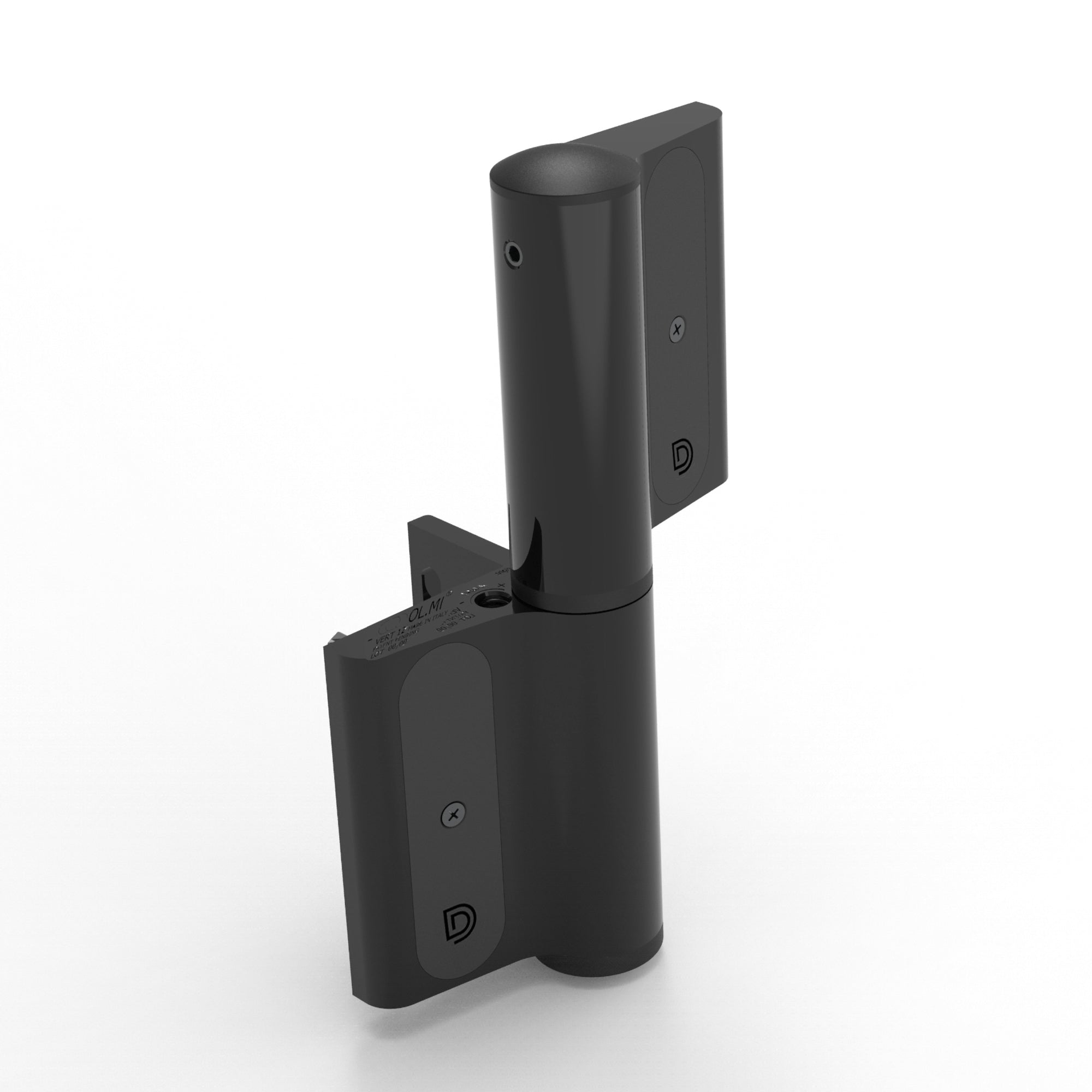

Product Code	77180743L, 77180743R
Gate Application	Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
Gate Type	Self-Closing
Gate Material	Aluminum, Steel/Ornamental Iron
Self-Closing Gate Weight	Up to 330lb (150kg) as pair
Approx Gate Size	4ft W x 6ft H (1.2m x 1.8m)
Gate Frame/Post Shape	Square-to-Square
Min Post Size	2"+ (50mm)
Ideal Gate Gap	3⁄5”– 4⁄5” (15-21mm)
Fixing Method	Screw-On
Colour/Finish	Matte Black Anodised
