Minimal, slimline design, mounted vertically
Versatile Installation:
• Can be mounted on pillars or walls, on both the push and pull sides of the gate.
• Ideal for retrofits and new construction.
Versatile Compatibility: Compatible with face or center mounted hinges and almost any pedestrian
and security gate.
Maximum Gate Size/Weight: For gates up to 4’ 3” wide and 330 lbs.
User-Friendly Installation: No welding required, making setup quick and easy.
Adjustable Speeds: Independently adjustable closing and latch speeds for customized operation.
Easy Speed Adjustments: Side-facing metal vales for easy access.
All-Weather Performance: Consistent operation across a wide range of temperatures.
Enhanced Safety: Pinch-free guide rail for added safety.
ADA suitable for gates with 34” or greater widths.
Includes: all necessary installation hardware, including a guide rail, mounting screws, and rivets.

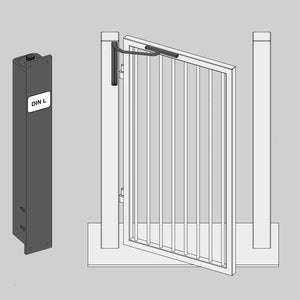

| DC622G-L-1-9004 | Vertical Gate Closer Left Hand* |
| DC622G-R-1-9004 | Vertical Gate Closer Right Hand* |
| DCA632----9004 | Mounting Plate for Guide rail |

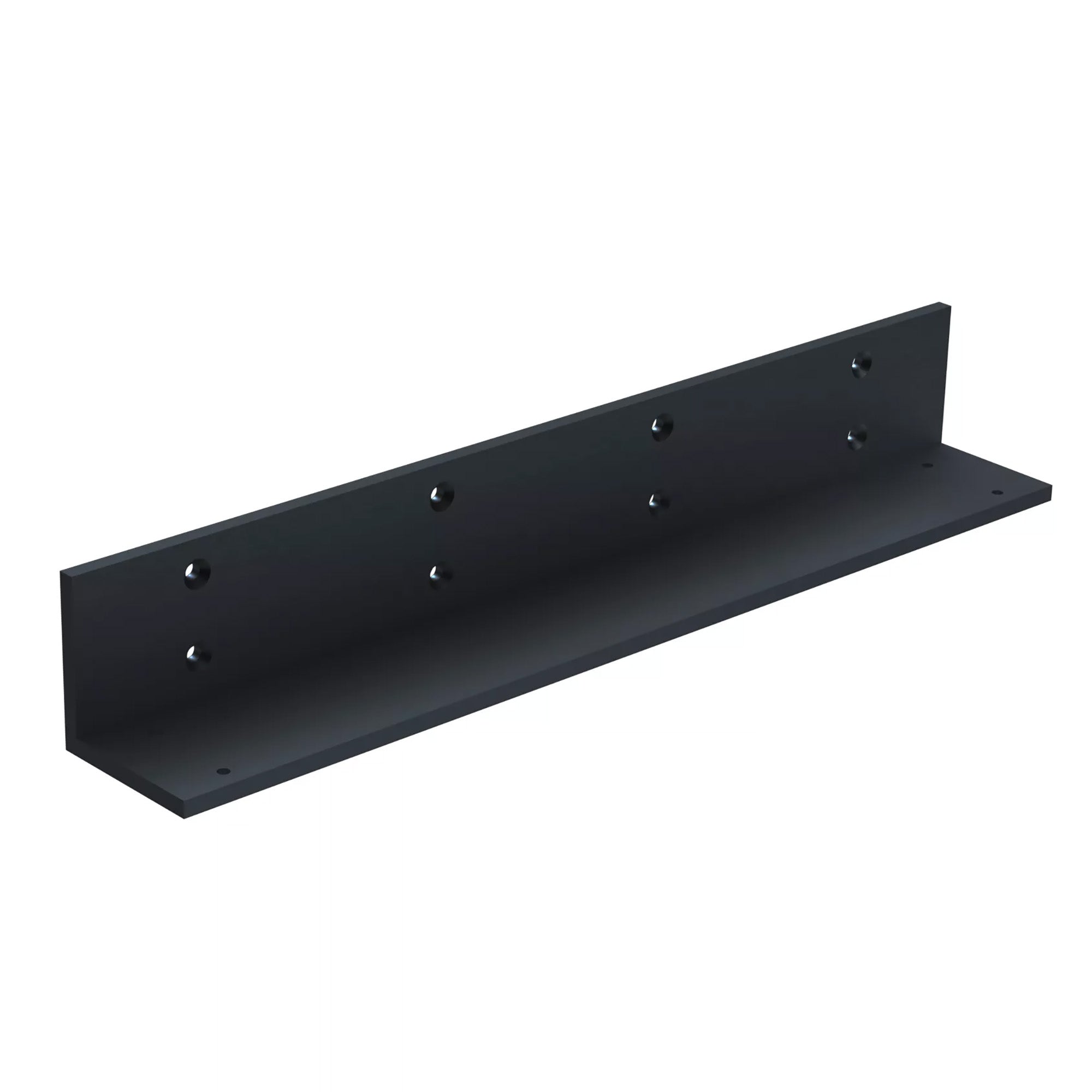

| DCA633----9004 | Mounting Bracket Kit for Body |
| DCA152----- | Mech Hold-Open Device A152 |
| DCA153----- | Mech Opening Damper A153 |
| Brand | SureClose® |
| Product Code | DC622G-L-900, DC622G-R-9004, DCA632-9004, DCA633-9004 |
| Gate Application | Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate |
| Gate Type | Self-Closing |
| Gate Material | Aluminum, Steel/Ornamental Iron, Brick |
| Self-Closing Gate Weight | Up to 330lb (150kg) |
| Approx Gate Size | 4.3ft W x 6ft H (1.3m x 1.8m) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 2"+ (50mm) |
| Ideal Gate Gap | ½”–1⅜” (12-35mm) |
| Fixing Method | Screw-On |
| Colour/Finish | Black Anodised |
